IATF 16949 used in various industries Quick Disconnect Fittings

Brand Name : carterberg

Model Number : CB-SP-10F-3

Certification : IATF16949

Place of Origin : Shanghai, China

MOQ : Negotiation

Price : Negotiation

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : 5000~20000 pc/month

Delivery Time : 7-20 work days

Packaging Details : carton

Material : zinc-plated steel, stainless steel

Rated Pressure : 20.7 Mpa

Connection : Female/Male

Rated Flow : 190 L/min

Type : ISO 7241A

Size : 1/4''-1''

Valves : Ball / Poppet

Interchange : PARKER 6600 Series/HANSEN HA 15000 Series

Contact Now

IATF 16949 used in various industries Quick Disconnect Fittings


The Series brings to the industry a proven design for use on construction equipment, forestry equipment, agricultural machinery, oil tools, steel mill machinery, and other demanding hydraulic applications


Body Size (in) 1/4 3/8 1/2 3/4 1
Rated Pressure (PSI) 5000 4000 4000 3000 3000
Rated Flow (GPM) 3 6 12 28 50
Temperature Range (std seals) -20℃至+120℃
Standard seal material NBR


Features

1.Poppet valves available to prevent uncoupled leakage.
2.Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
3.Critical parts are hardened for durability.
4.Dependable ball-locking mechanism holds the mating halves together
5.Socket and plug are precision machined from solid bar stock.
6.The series conforms to the standard of ISO 7241-A.
7. Compatible with PARKER 6600 Series, FASTER ANV Series, AEROQUIP 5600 Series and HANSEN HA 15000 Series

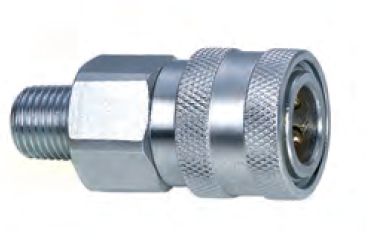

IATF 16949 used in various industries Quick Disconnect Fittings IATF 16949 used in various industries Quick Disconnect Fittings

Body Size PARTNO. LS Φ D HEX1 A T
1/4" CB-S2S-10F-3 53.5 26 22 13 ZG1/4 NPT1/4
3/8" CB-S3S-10F-3 57.5 31.5 27 13 ZG3/8 NPT3/8
1/2" CB-S4S-10F-3 66.5 38.5 27 16 ZG1/2 NPT1/2
3/4" CB-S6S-10F-3 81.5 48 36 18 ZG3/4 NPT3/4
1" CB-S8S-10F-3 96 56 41 21 ZG1 NPT1

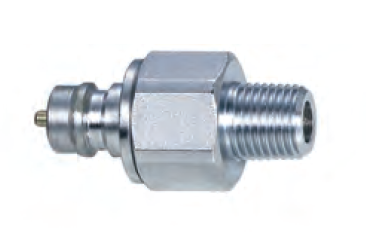

IATF 16949 used in various industries Quick Disconnect Fittings IATF 16949 used in various industries Quick Disconnect Fittings

Body Size PARTNO. LP d C HEX2 A T
1/4" CB-P2S-10F-3 46 11.8 15.2 22 13 ZG1/4 NPT1/4
3/8" CB-P3S-10F-3 53 17.3 21.4 27 13 ZG3/8 NPT3/8
1/2" CB-P4S-10F-3 62.5 20.5 27 27 16 ZG1/2 NPT1/2
3/4" CB-P6S-10F-3 66.5 29 28 36 18 ZG3/4 NPT3/4
1" CB-P8S-10F-3 79 34.3 36 41 21 ZG1 NPT1


Our Services:

1. Customized design, OEM is available.
2. In-time & professional after sales service.
3. Low MOQ, standard package, fast delivery.
4. Special discount and protection are provided to our distributors.
5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature.
